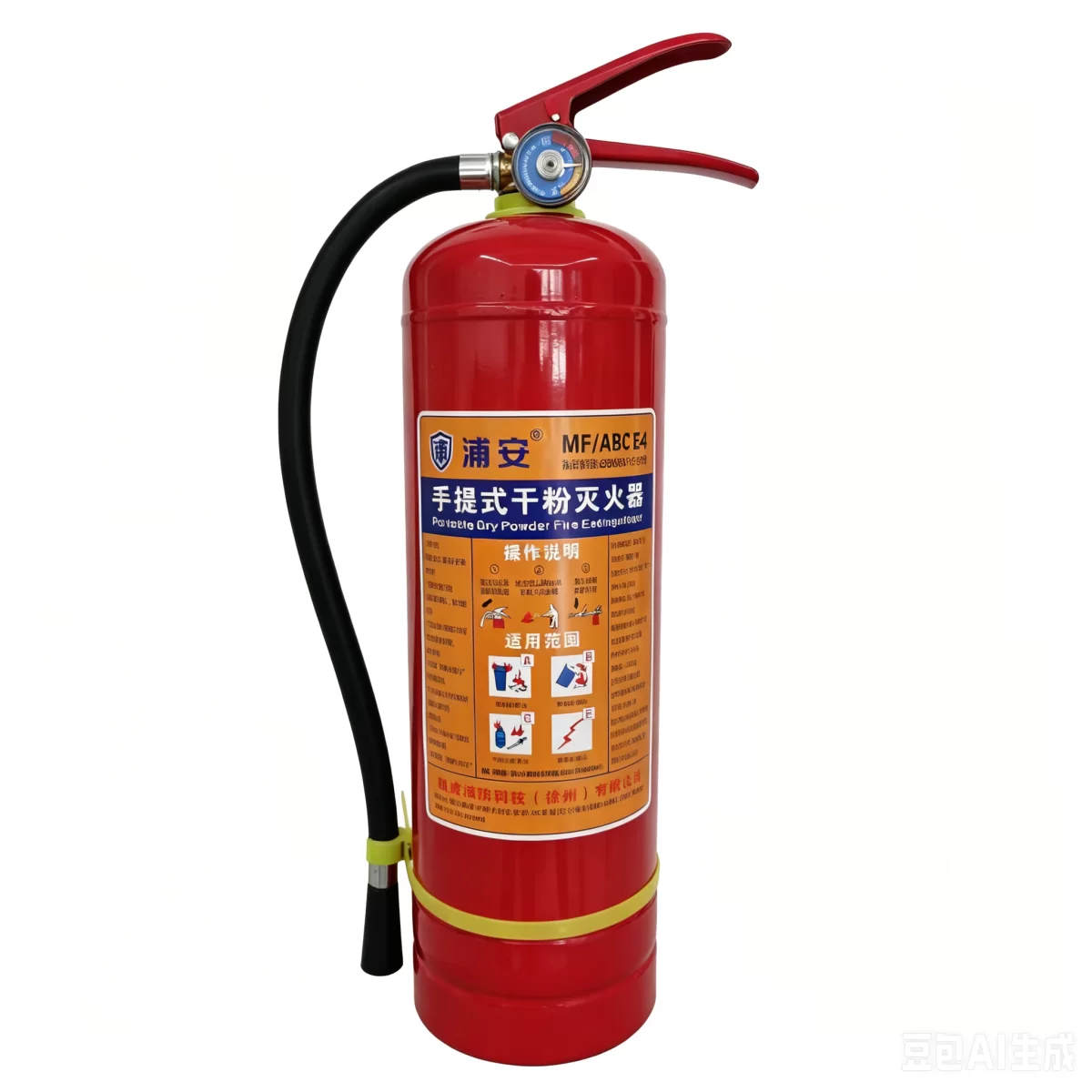

5kg Portable Dry Powder Fire Extinguisher – High-Efficiency Firefighting Solution for Commercial, Residential, and Vehicle Use
Model: MF/ABC5
Extinguishing Agent: ABC Super-fine Dry Powder (Monoammonium Phosphate-based)
Filling Weight: 5kg ± 5%
Total Weight (Charged): Approx. 6.8 - 7.5kg
Working Pressure: 12 - 14 Bar (at room temperature)
Discharge Time: ≥ 15 - 20 seconds
Effective Range: ≥ 5 - 8 meters
Fire Rating: 5A / 55B
Operating Temperature: -20℃ to +55℃
Cylinder Material: High-strength steel (with anti-corrosion treatment)
Valve Material: Chrome-plated brass
Propellant: Nitrogen (N₂)
Dimensions: Height: approx. 500-560mm; Diameter: approx. 140-150mm
Shelf Life: 5 years (if unused)
Product Features:
- Precision pressure gauge for real-time status monitoring
- Safety pin to prevent accidental discharge
- Flexible hose for easy maneuverability
- CCC (China Compulsory Certification) approved
This 5kg Dry Powder Fire Extinguisher is designed for commercial, industrial, and vehicle environments with high safety standards, focusing on the effective control of incipient-stage fires.
Commercial/Residential Use:
- Commercial kitchen grease fires (restaurants/hotels)
- Electrical or solid fuel fires in small warehouses and workshops
- Fire safety equipment for offices and retail stores
Vehicle Use:
- Engine bay fires in trucks, buses, and logistics vehicles
- Emergency equipment for long-distance transport
- Initial fire containment for larger vehicles
Other Applicable Areas:
- Manufacturing plants and logistics warehouses
- School laboratories and underground parking garages
- Construction sites and outdoor work bases
Fire Class Suitability (ABC Dry Powder):
- Class A: Solid fires (wood, paper, textiles, furniture, etc.)
- Class B: Liquid fires (gasoline, diesel, cooking oil, paint, etc.)
- Class C: Electrical fires (live equipment, wiring, appliances, etc.)
Safety Note: This device is intended for the suppression of incipient fires. In the event of an uncontrollable fire, evacuate immediately and dial emergency services (119/local emergency number).
- CCC Certification: Compliant with GB 4351.1-2005 (Portable fire extinguishers) and GB 4066-2017 (Dry powder extinguishing agents).
- ISO 9001 Quality Management System Certification
- Factory Inspection Report: Each unit undergoes pressure testing, discharge performance testing, and filling weight verification.
- Production License: Licensed for fire equipment manufacturing.
- Warranty Service: 1-year warranty (excluding man-made damage); professional recharging and maintenance services supported.
This product is manufactured in strict accordance with national fire safety standards. All key parameters have been verified by authorized testing institutions, ensuring reliable quality for commercial and residential fire safety.
FAQ
What types of fires is this extinguisher suitable for?
Dry powder extinguishers are suitable for Class A (solids), Class B (liquids), and Class C (gases) fires. CO2 extinguishers are suitable for Class B and electrical fires. Water-based extinguishers are suitable for Class A fires. Refer to the product manual for specific applications.
How often should the extinguisher be maintained?
Professional maintenance inspection is recommended annually, with monthly self-inspection. Check if the pressure gauge pointer is in the green zone, the seal is intact, and there is no damage or corrosion.
What is the shelf life of the extinguisher?
PMAM extinguishers typically have a shelf life of 3-5 years, specific to the product label. Replace or recharge through a professional after expiration.
How do I use this extinguisher correctly?
Remember "P.A.S.S.": Pull the pin; Aim at the base of the fire; Squeeze the handle; Sweep side to side until the fire is out.
What certifications does this product have?
PMAM products have passed ISO9001, CE, UL and other international certifications, ensuring products meet global safety standards.
Can you provide bulk purchase quotes?
Yes, we offer discounts for bulk purchases. Contact us via the inquiry form or phone for detailed quotes.
